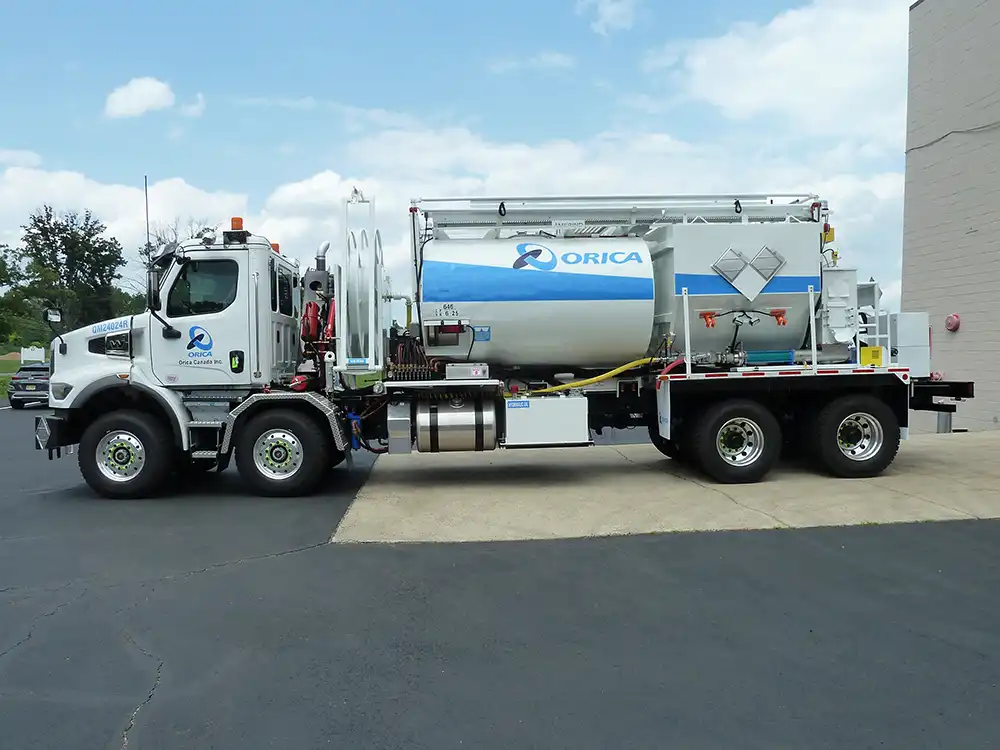

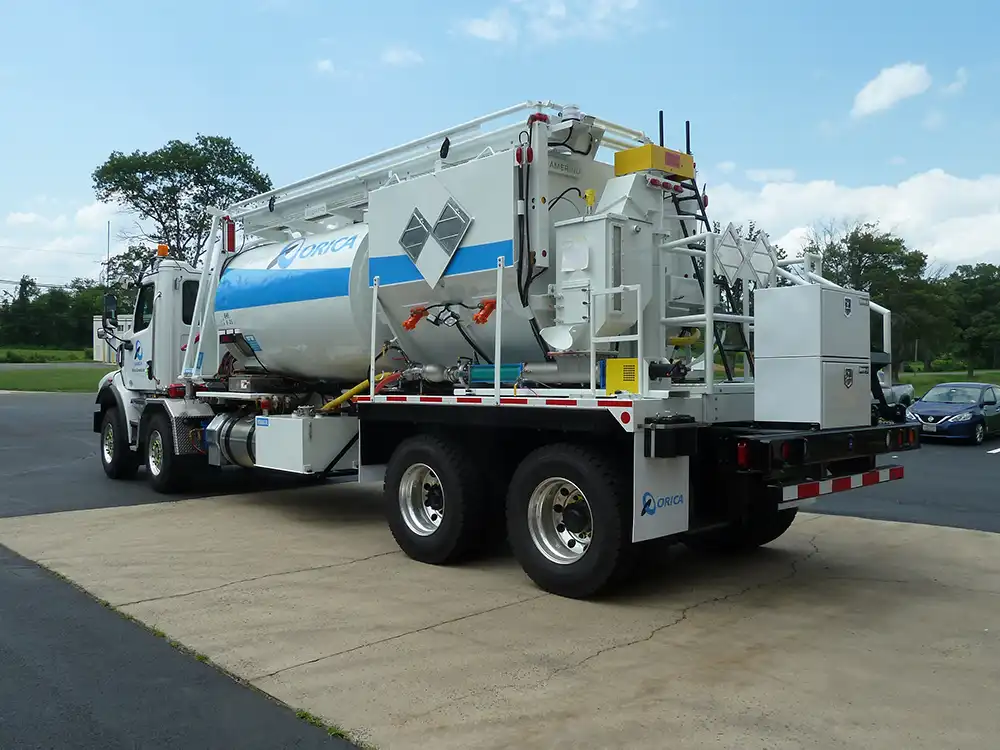

Truck 1

This specialized truck is engineered for high performance in wet and cold environments. The entire system is managed by a proportional CAN electrically controlled hydraulic system, and is capable of delivering product at a maximum rate of 500 lbs/min. It features substantial storage capacity, including a 2,000-gallon emulsion tank, a 5-ton (5T) AN Prill tank, a 60-gallon gassing tank, and a 200-gallon water tank.

Crucially, the truck is equipped with our Arctic Package, which features insulation and skinning on the emulsion tank, a hot water recirculation heater system for both the gassing and water tanks, and a glycol flushing system specifically for the gassing and water pumps. Operational efficiency is further enhanced by pneumatic bin vibrators designed to loosen any clumped product. For system protection and safety, the truck includes a heat exchanger to regulate hydraulic oil temperature, two storage boxes in the rear, and a four-sided, hydraulically controlled guard rail. Finally, the hose reel features a 2-axis control that allows for independent extension and retraction of both the boom and the drum.

Features Include:

  • 2,000 Gallon emulsion tank
  • 5-Ton AN bin
  • 200 Gallon water tank
  • 60-gallon gassing tank
  • Glycol flushing system
  • Arctic Package
  • Delivering Capability – 100 – 500 lbs/min
