Truck 3

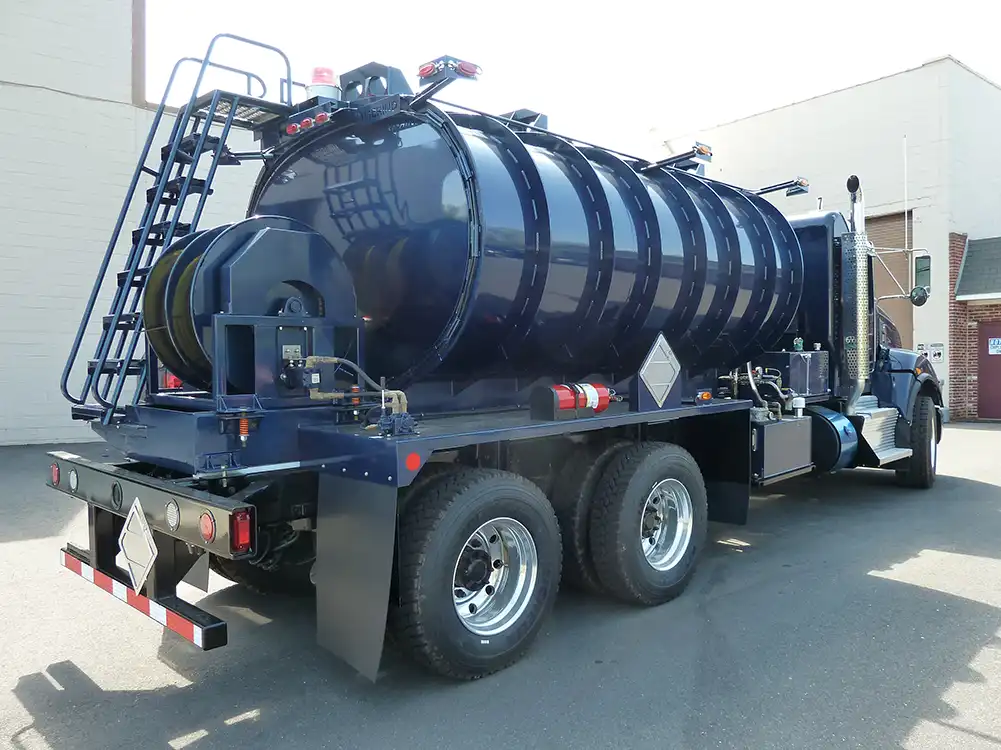

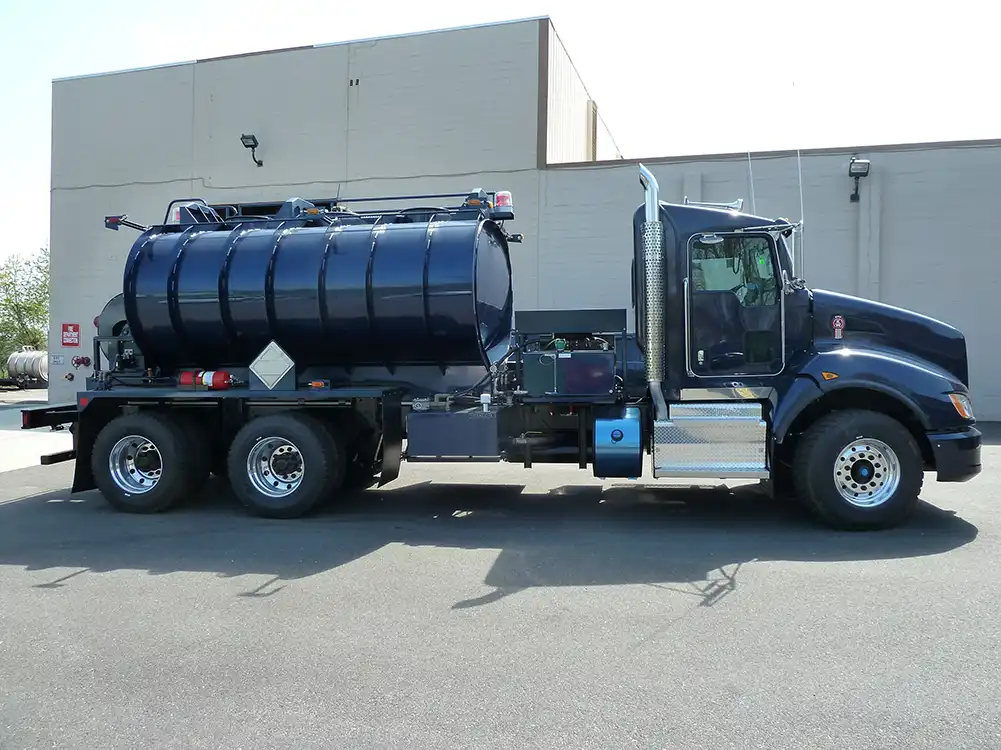

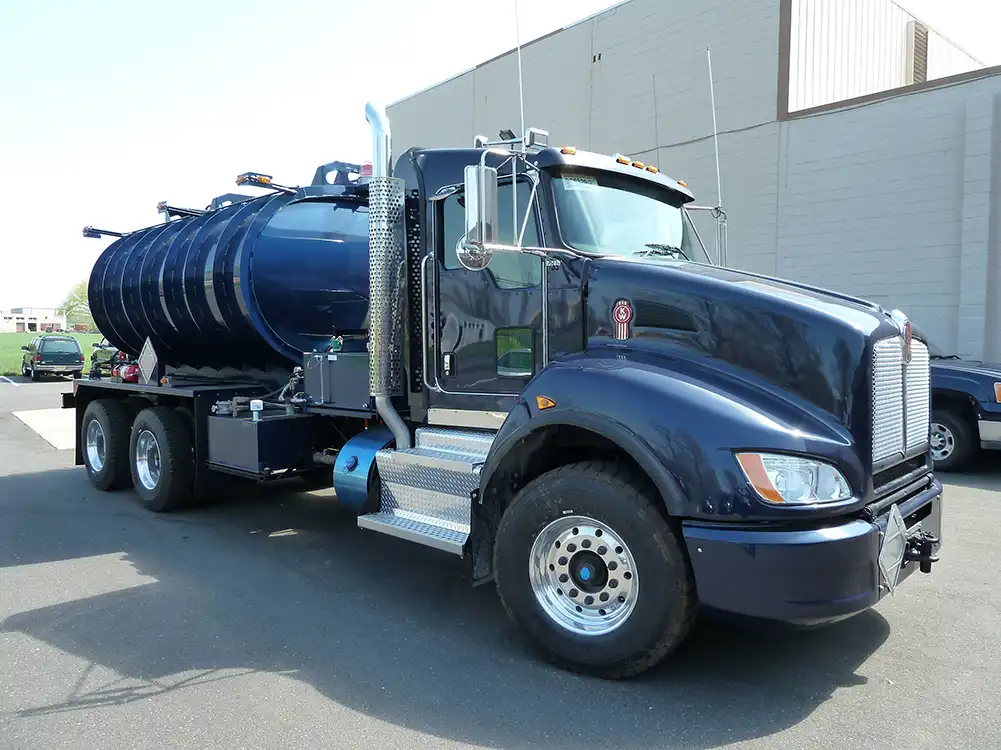

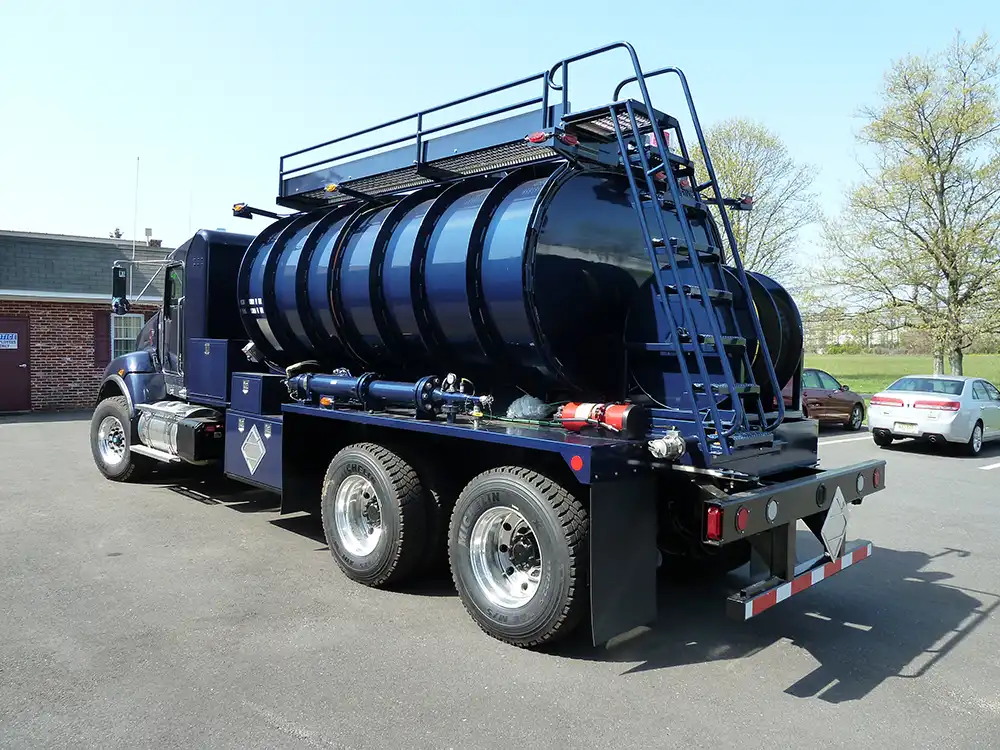

This specialized truck is engineered for high performance in wet environments. Its entire operation is managed by a simple proportional electrically controlled hydraulic system which is an upgrade from a fully manually operated truck. This system is capable of delivering sensitized emulsion at a maximum rate of 400 lbs/min, with two dedicated potentiometers controlling the water and delivery rates. It features substantial storage capacity, including a 2,600-gallon emulsion tank and a 115-gallon water tank, eliminating the need for an integrated gassing system due to the use of sensitized product.

For system protection and safety, the truck includes a heat exchanger to regulate hydraulic oil temperature, large storage boxes, a manual hydraulically controlled dual storage reel, and a one-sided, 12-inch-high fixed guard rail.

Features Include:

  • 2,600 Gallon emulsion tank
  • 115 Gallon water tank

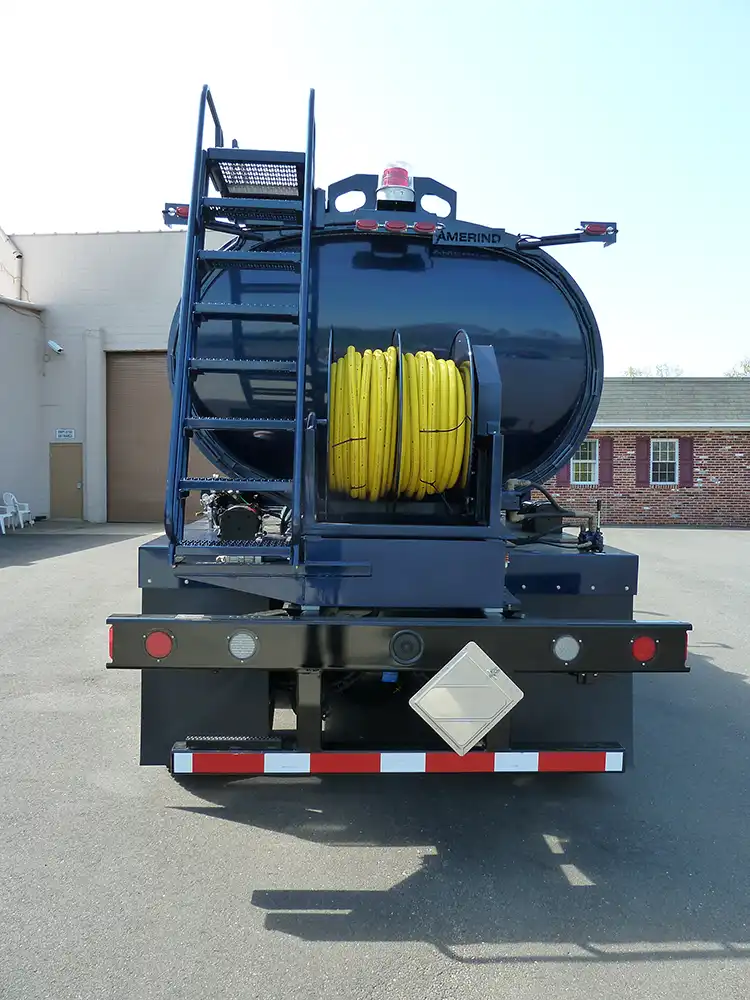

  • Hydraulically controlled dual storage reel
  • 12” fixed guard rail – one sided
  • Large toolboxes
  • Delivering capability – 100 – 400 lbs/min
