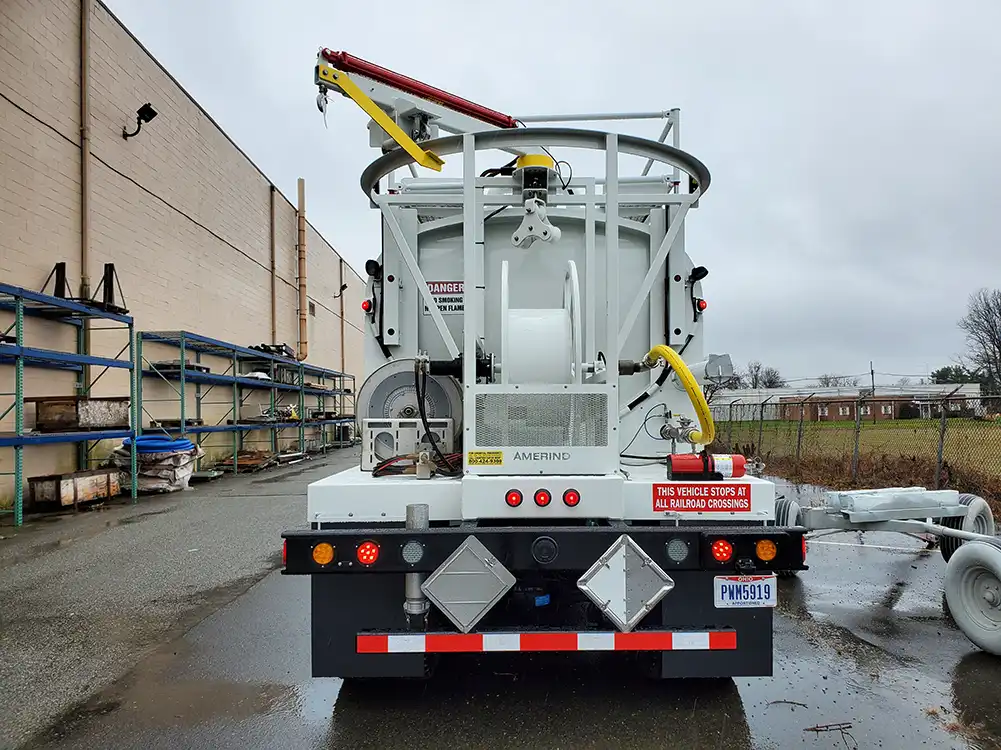

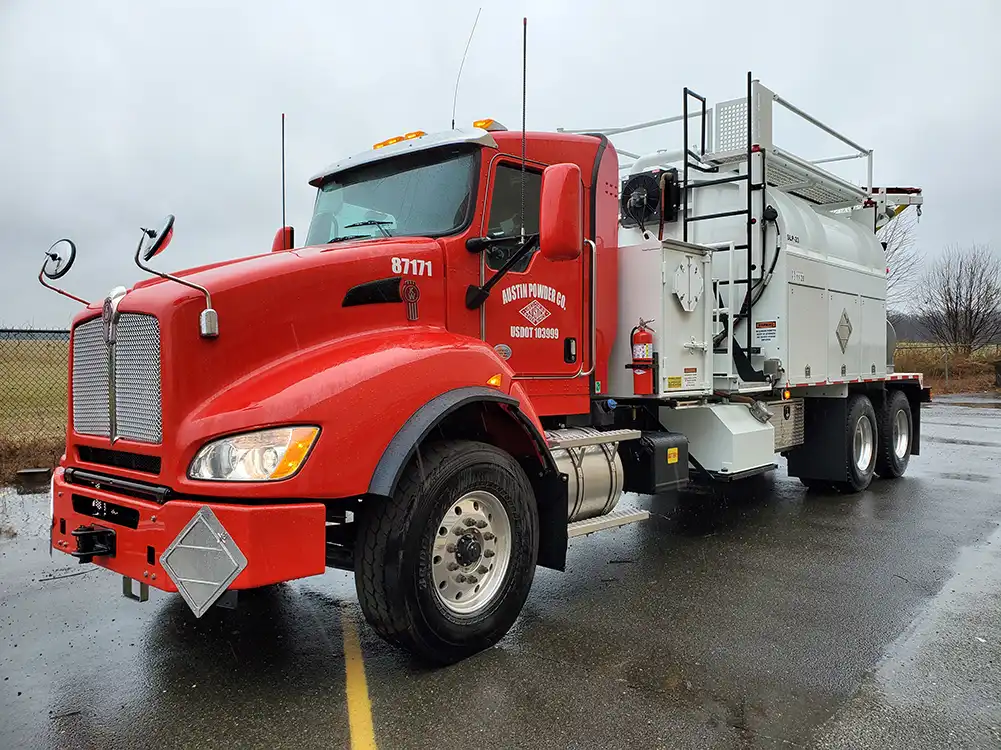

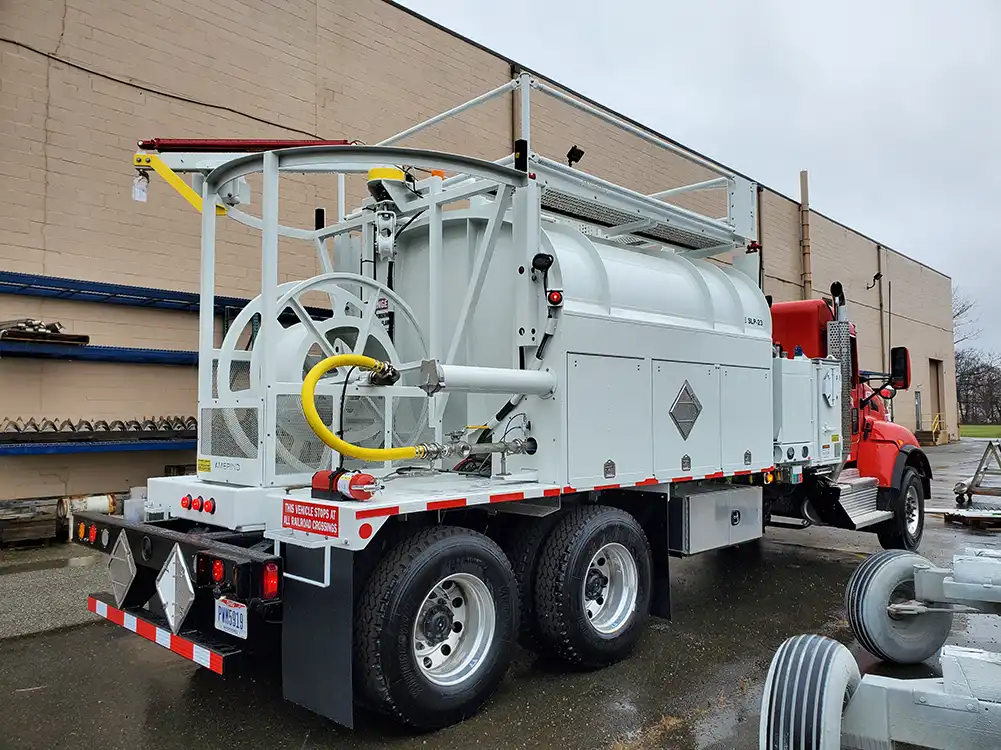

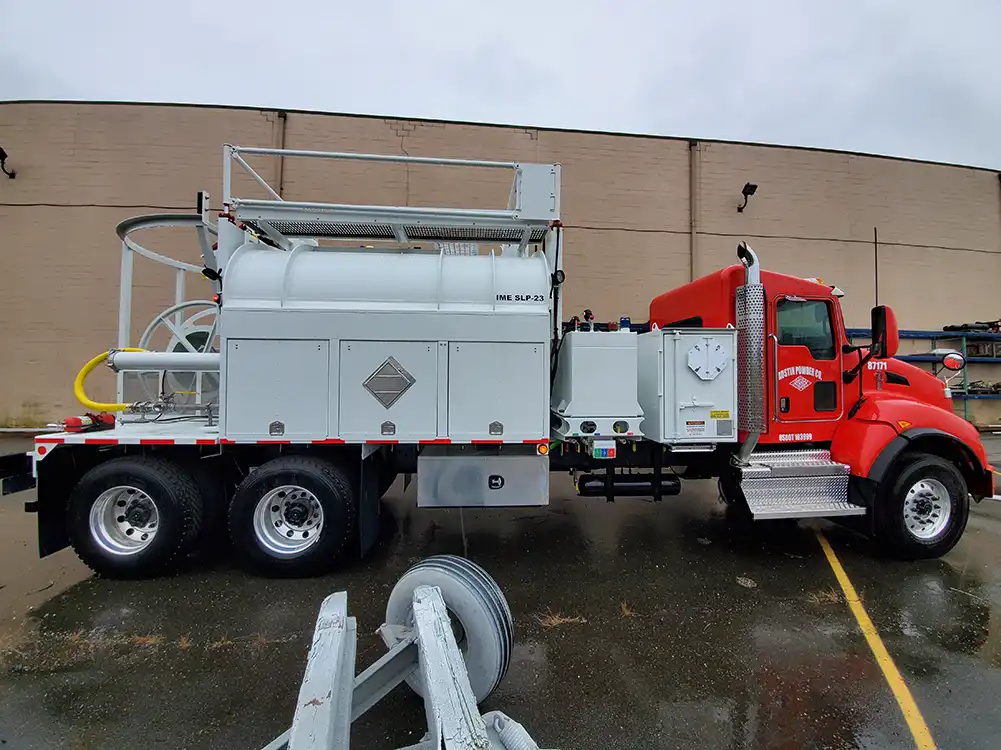

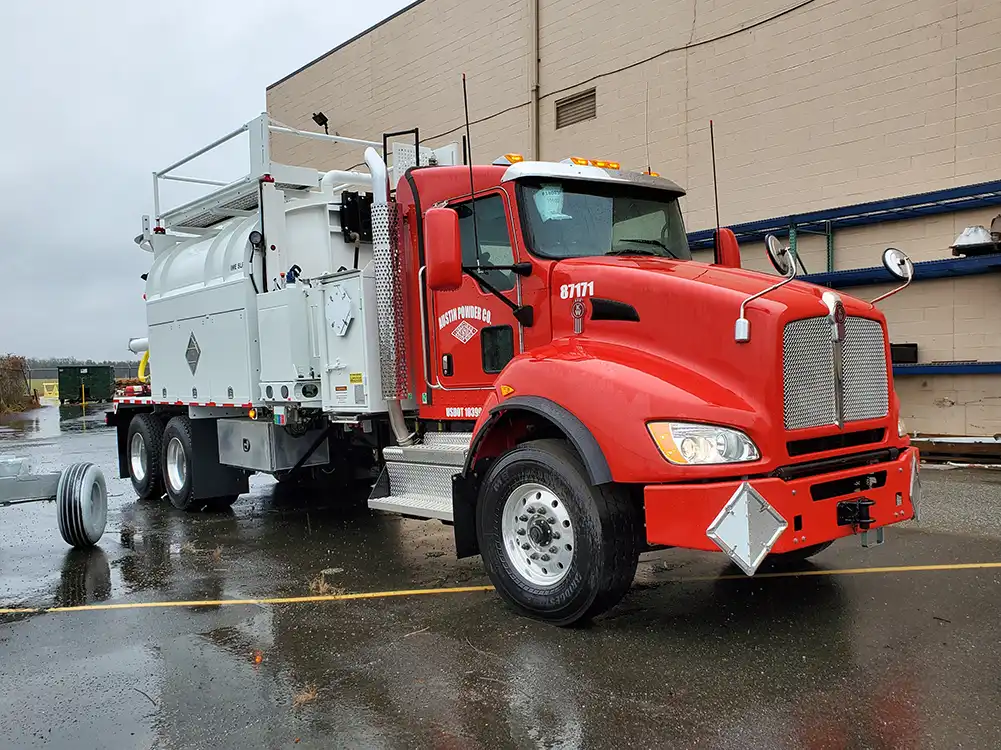

Truck 2

This specialized truck is engineered for high performance in wet environments. The entire system is managed by a proportional CAN electrically controlled hydraulic system, and is capable of delivering product at a maximum rate of 400 lbs/min. It features substantial storage capacity, including a 2,200-gallon emulsion tank, a two-part gassing system (70-gal Gassing 1 & 35-gal Gassing 2), and a 90-gallon water tank.

Operational efficiency is enhanced by an upload system for the gassing and water tanks, and a water flushing system for the gassing pumps. For system protection and safety, the truck includes a heat exchanger to regulate hydraulic oil temperature, a hydraulically controlled storage reel, and a four-sided, hydraulically controlled guard rail. Finally, the hose reel features a unique 3-axis control that allows for independent extension, retraction, and swivel of the boom, as well as extension and retraction of the reel.

Features Include:

  • 2,200 Gallon Emulsion Tank
  • 90 Gallon Water Tank
  • 2 – Gassing tanks (1 – 70gal & 1 – 35gal)
  • Hydraulically controlled storage reel
  • Heat exchanger
  • Water flushing system
  • Swiveling hose reel
  • Delivering Capability – 100 – 400 lbs/min
